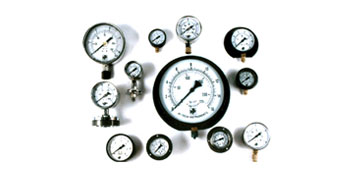

Pressure Gauges

We at Ambuja Tube Fitting are also suppliers of pressure gauges of "Hi-Tech" make pressure gauges manufactured by Hi-Tech make are durable and Long lasting unlike other competitors whose pressure gauges needs to be changed every forth night due to wrong pressure reading. Bourden type pressure gauges supplied by us are widely used in industries. The motion of bourden tube propels the pointer mechanism through rack and pinion arrangement. Pressure gauges are used in application such as Air, Vapour, Gases & Liquid pressure thus our supplied gauges finds wide application.

Types Of Pressure Gauges :

  1. Pressed Steel Gauges.
  2. Non-Ferrous Gauges.
  3. Stainless Steel Gauges.
  4. Shaffer's Diaphragm Gauges.
  5. Sealed Diaphragm Gauges.
  6. Capsule Gauges.
  7. Receiver Gauges.
  8. Differential Gauges.
  9. Ammonia Gauges.
  10. Freon Gauges.
  11. Depth Gauges.
  12. Draught Gauges.
  13. Pulp Gauges.
  14. Hydraulic Gauges.
Range Least Count Range Least CountRangeRange
Kg/Cm2 Psi Kg/Cm2 Psi Kg/Cm2 Psi Kg/Cm2 Psi
0-1 0-15 0.02 0.5 0-28 0-400 1 10
0-1.6 0-22 0.05 0.6 0-35 0-500 1 10
0-2 0-30 0.05 1 0-40 0-600 1 20
0-2.5 0-35 0.05 1 0-60 0-850 2 20
0-3.5 0-50 0.1 1 0-70 0-1000 2 20
0-4 0-60 0.1 2 0-100 0-1500 2 50
0-6 0-85 0.2 2 0-140 0-2000 5 50
0-7 0-100 0.2 2 0-160 0-2200 5 50
0-10 0-150 0.2 5 0-200 0-3000 5 100
0-14 0-200 0.5 5 0-280 0-4000 10 100
0-16 0-220 0.5 5 0-350 0-5000 10 100
0-21 0-300 0.5 10 0-400 0-6000 10 200
0-25 0-350 0.5 10 0-600 0-9000 20 200
0-700 0-10000 20 200

Items to be used with Pressure Gauge.

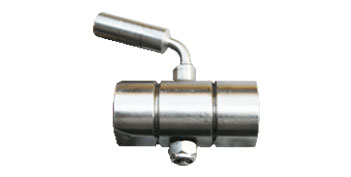

Gauge Cocks : Gauge cocks are used along with syphons before pressure gauges to avoid damage to pressure gauges due to excessive pressure and is fitted with air compressor before pressure gauge when the gauge cock is opened the compressor gives out air pressure due to easy open close it is widely demanded. Gauge cocks can be supplied in two way and three way form and with drain holes as required.
