IC Fittings

IC Fittings means investment casting fittings which are made using very good casting technology & using standard materials only like 304 ss, 316 ss. Ambuja Specialises in investment casting fittings which are widely used where cost is a contraint i.e it gives cheap & economical solutions then barstock material fittings which are costly in lines which demand economy. Types of IC Fittings

Technical Specification :
Size A D Size A D
¼” 19 22 11/4” 45 52
3/8” 23 25 11/2” 48 61
1/2” 28 29 2” 57 74
3/4” 32 36 21/2”
1 37 45 3”
      4”

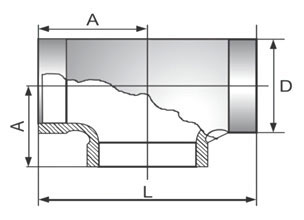

Technical Specification :
Size A L D Size A L D
1/8” 17 34 20 11/4” 44 81 52
1/4” 19 39 23 11/2” 48 94 61
3/8” 22 46 26 2” 57 113 74
1/2” 27 54 30 21/2”
3/4” 33 62 36 3”
1” 37 74 45 4”

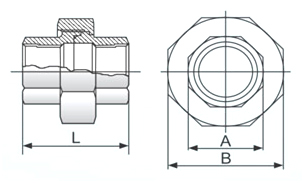

Technical Specification :
Size L A B Size L A D
1/8” 36 18 29 11/4” 57 49 68
1/4” 36 18 29 11/2” 61 56 76
3/8” 40 22 35 2” 67 68 91
1/2” 43 27 41 21/2”
3/4” 50 31 49 3”
1/2” 53 39 58 4”
Technical Specification :
Size L D Size L D
1/8” 25 21 11/4” 47 49
1/4” 30 21 11/2” 49 56
3/8” 30 23 2” 57 69
1/2” 36 26 21/2”
3/4” 38 33 3”
1 42 39 4”

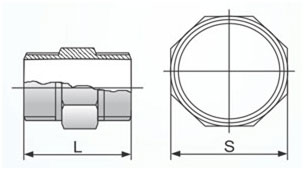

Technical Specification :
Size L S Size L S
1/8” 32 13 11/4” 58 46
1/4” 34 15 11/2” 62 51
3/8” 36 20 2” 66 63
1/2” 43 23 21/2”
3/4” 47 29 3”
1 52 36 4”

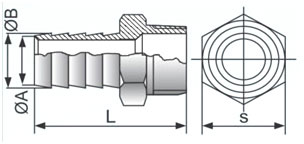

Technical Specification :
Size L S A B Size L S A B
1/4” 42 15 5 8.5 11/4” 76 46 28 33.5
3/8” 48 20 7 11 11/2” 92 52 37 40
1/2” 56 24 10 14 2” 100 63 44 52.5
3/4” 62 29 15 20.5 21/2”
1 70 36 21 27 3”
          4”
Technical Specification :
Size L S Size L S
  mm Inch mm Inch   mm Inch mm Inch
1/2” x 1/4” 23 0.91 26 1.02 11/4”x 1” 31 1.22 46 1.81
1/2” x 3/8” 23 0.91 26 1.02 11/2” x 1/8” 32 1.26 52 2.05
3/4” x 1/8” 25 0.98 31 1.22 11/2” x 1/4” 32 1.26 52 2.05
3/4” x 1/4” 25 0.98 31 1.22 11/2” x 3/8” 32 1.26 52 2.05
3/4” x 3/8” 25 0.98 31 1.22 11/2” x 1/2” 32 1.26 52 2.05
3/4” x 1/2” 25 0.98 31 1.22 11/2” x 3/4” 32 1.26 52 2.05
1” x 1/8” 28 1.10 38 1.50 11/2” x 1” 32 1.26 52 2.05
1”x1/4 28 1.10 38 1.50 11/2” x 11/4” 32 1.26 52 2.05
1”x3/8 28 1.10 38 1.50 2” x 1/8” 36 1.42 65 2.56
1”x1/2 28 1.10 38 1.50 2” x 1/4” 36 1.42 65 2.56
1”x3/4 28 1.10 38 1.50 2” x 3/8” 36 1.42 65 2.56
11/4”x1/8 31 1.22 46 1.81 2” x 1/2” 36 1.42 65 2.56
11/4”x1/4 31 1.22 46 1.81 2” x 3/4” 36 1.42 65 2.56
11/4”x3/8 31 1.22 46 1.81 2” x 1” 36 1.42 65 2.56
11/4”x1/2 31 1.22 46 1.81 2” x 11/4” 36 1.42 65 2.56
11/4”x3/4 31 1.22 46 1.81 2” x 11/2” 36 1.42 65 2.56
Technical Specification :
Size L
mm
Size
Inch
L mm Inch
1/2” x 1/4” 34 1.34 11/2” x 3/8” 59 2.32
1/2” x 3/8” 34 1.34 11/2” x 1/2” 59 2.32
3/4” x 1/4” 38 1.5 11/2” x 1” 59 2.32
3/4” x 3/8” 38 1.5 11/2”x 11/4” 59 2.32
3/4” x 1/2” 38 1.5 2” x 1/4” 67 2.64
1” x 1/4” 42 1.65 2” x 3/8” 67 2.64
1” x 3/8” 42 1.65 2” x 1/2” 67 2.64
1” x 1/2” 42 1.65 2” x 3/4” 67 2.64
1” x 3/4” 42 1.65 2” x 1” 67 2.64
11/4” x 1/4” 54 2.13 2” x 11⁄4” 67 2.64
11/4” x 3/8” 54 2.13 2” x 11⁄2” 67 2.64
11/4” x 1/2” 54 2.13 21⁄2” x 1⁄2” 75 2.95
11/4” x 3/4” 54 2.13 2” x 3⁄4” 75 2.95
11/4” x 1/4” 54 2.13 2” x 1” 75 2.95
11/2” x1/4” 54 2.13 2 1⁄2” x 11/4” 75 2.95
