Caps & Stub Ends Exporters in Mumbai

Technical Specifications

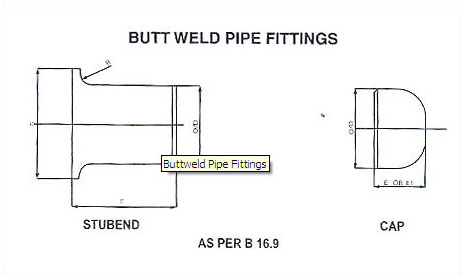

Nominal Pipe Size (NPS)	Outside Diameter at Bevel (O/D)	Long Pattern Length ''F''	Short Pattern 'F'	Radius of Follet 'R'	Dia of Lap 'G'	Length 'E'	Limiting Wall Thk for Length 'E'	Length 'E1'
1/2''	21.3	76.0	51	3	35	25	4.57	25
3/4''	26.7	76.0	51	3	43	25	3.81	25
1''	33.4	102.0	51	3	51	38	4.57	38
1 ¼''	42.2	102.0	51	5	64	38	4.83	38
1 ½''	48.3	102.0	51	6	73	38	5.08	38
2''	60.3	152.0	64	8	92	38	5.59	44
2 ½''	73.0	152.0	64	8	105	38	7.11	51
3''	88.9	152.0	64	10	127	51	7.62	64
3 ½''	101.6	152.0	76	10	140	64	8.13	76
4''	114.3	152.0	76	11	157	64	8.64	76
5''	141.3	203.0	76	11	186	76	9.65	89
6''	168.3	203.0	89	13	216	89	10.92	102
8''	219.1	254.0	102	13	270	102	12.7	127
10''	273.0	254.0	127	13	324	127	12.7	152
12''	323.8	305.0	152	13	381	152	12.7	178
14''	355.6	305.0	152	13	413	165	12.7	191
16''	406.4	305.0	152	13	470	178	12.7	203
18''	457.0	305.0	152	13	533	203	12.7	229
20''	508.0	305.0	152	13	584	229	12.7	254
22''	559.0	305.0	152	13	641	254	12.7	254
24''	610.0	305.0	152	13	692	267	12.7	305
